Product Description

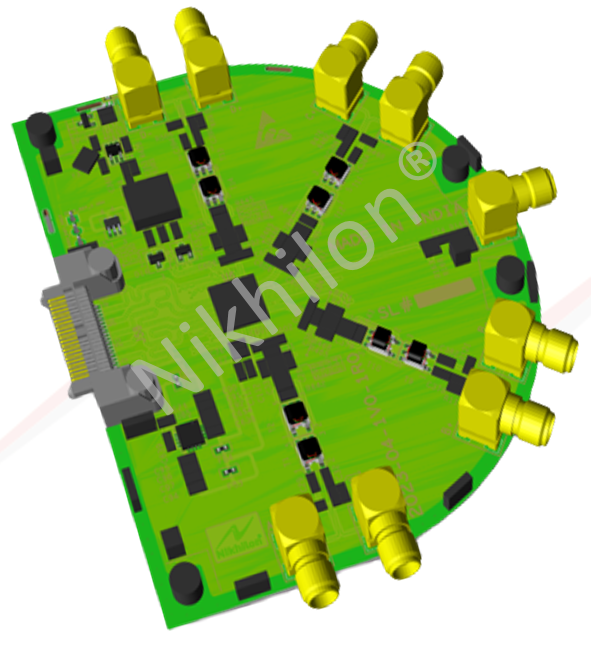

The ADC Board is an evaluation board for the AD9653, quad 16-bit ADC. This reference design provides all of the support circuitry required to operate the devices in their various modes and configurations. It is designed to interface directly with the VEGA-10G SBC, allowing users to download captured data for analysis. The Visual Analog software package, which is used to interface with the device's hardware, allows users to download captured data for analysis with a user-friendly graphical interface. The SPI Controller software package is also compatible with this hardware, and allows the user to access the SPI programmable features of the ADC.

Key Features & Benefits

Analog

4 Channel, 16-Bit,

Serial LVDS 1.8 V

Low power: 164 mW per channel at 125 MSPS with scalable power options

SNR = 76.5 dBFS @ 70 MHz (2.0Vp-p input span)

SNR = 77.5 dBFS @ 70 MHz (2.6Vp-p Input span)

SFDR = 90 dBc (to Nyquist)

DNL = ±0.7 LSB (typical); INL = ±3.5 LSB (typical)

Serial LVDS (ANSI-644, default) and low power, reduced signal option (similar to IEEE 1596.3)

650 MHz full power analog bandwidth

2 V p-p input voltage range (supports up to 2.6 V p-p)

User Flexibility. The SPI control offers a wide range of flexible features to meet specific system requirements

Power

3.3V on Edge connector

APPLICATIONS

Medical ultrasound and MRI

High speed imaging

Quadrature radio receivers

Diversity radio receivers

Test equipment
