Hardware Design

Contact Us to know more

Contact with us through our representative or submit a business inquiry online.

Nikhilon provides Concept-To-Design solutions in embedded systems design. We undertake prototyping, value engineering, covering wide area in electronics domain considering mechanicals constraints & value engineering. We mainly consider design reliability, accuracy, quality, scalability & flexibility.

Nikhilon Engineering Team is very familiar with memory technologies and routing constraints with high-speed bus, DDRAM memories, other cutting edge technologies such as PCI, PCIX, PCI Express, Rapid I/O, Hyper Transport, 10/100/1000 Ethernet, USB, SPI and complex network interfaces.

Capabilities

Embedded System Design
Consumer Electronics design
DSP Based designs
CPLD / FPGA Designs
Micro controller / Microprocessor based board design
USB, ETHERNET, RS-232, RS-422, JTAG, I2C, SPI,cPCI, PMC, XMC PCI, ETX modules, Com express modules.
Implementing Avionics standards, like ARINC and 1553B.
PCB layout design & Prototyping (Single & Multilayer)
Complete electronic product design from concept to completion (Turn Key Projects)

Approach

Architectural design based on Product Requirement Analysis.

Review of architectural design with cross functional teams.

Detailed Engineering / Design specification.

Component identification, library creation & verification.

Conversion of Architecture into schematics entry for all the blocks.

Schematic review with clients.

Layout guidance for PCB Design Team.

Layout review & Signal Integrity

Preparation of BOM.

Support for further test & Validation.

Test Case Preparation and Documentation

Domains

CPU Architecture : ARM, AVR, PowerPC, PIC
SOC: Xilinx Zynq
FPGA : Artix, Kintex, Virtex, Spartan
Peripherals: WiFi, Bluetooth 2/3/4, GPS, GPRS, EDGE, HSDPA, ALS, Accelerometer, Fuel Gauge, Battery Charger, Ethernet PHY 10/100/1000 Mbps, Ethernet Switch, ISI, PCI/PCIe Bridge, E1/T1 Framer, STM1 Framer
Memory Devices: DDR3, DDR2, DDR, SD RAM, SRAM, NAND FLASH, NOR FLASH, EEPROM.
Interfaces: HDMI, LVDS, LCD, Touch Panel, USB, SATA, SDIO, TV I/O, Camera, PCI, PCIe, RGMII, GMII, RSGMII, SGMII, MII, RMII, TDM, I2C, UART, SPI, DVI-D

Protocols

Communication: SPI, RS-232, RS422, USB, CAN, I2C, UART, PCI, PCIe
Video: NTSC/PAL, HDMI, H.264, MPEG-4
Networking: TCP / IP , ETHERNET
Wireless: Bluetooth, WiFi, WLAN 802.11, ZigBee, WiMax
Encryption: KeeLoq [AES, DES], Differential Manchester [AES, DES]
BUS Architecture: AMBA, AXI, APB, AHB
Testing: JTAG, ICE

Related Products

Data Acquisition Board-1

This is an SOC Based Data Acquisition Board. This is a unique development board targeting the applications in the RF domain e.g. RADAR, LTE and WiMax. The board includes on-board interfaces like Ethernet and USB for PC communication.

Data Acquisition Board-2

This is a Spartan based FPGA board having below interfaces: 1. USB-3.0 2. Ethernet 3. SD Card 4. DDR3 [1GB] 5. IT also has some free IO ports, which can have a piggy back card.

PCIe BackPlane

Nikhilon’s 2037-01 PCI Express backplane is designed to support up to eighteen PCIe plug-in I/O cards and a PICMG 1.3 single board computer. Four of the two x8 PCIe mechanical card slots are driven with x8 PCIe electrical links. The remaining Sixteen x16 mechanical card slots are driven with x4 PCIe electrical links.

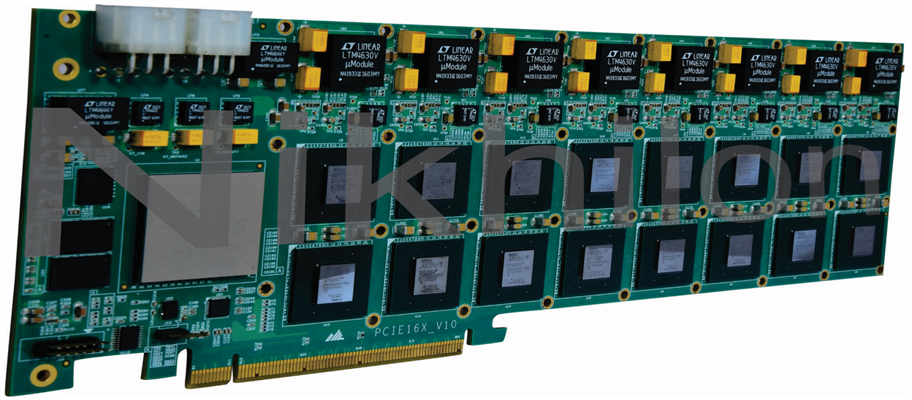

Programmable Accelerator Card

Locic Cells upto 215x16=3440K AXI IP & Analog Mixed Signal Integration upto 16x6.6G Gts, 930 GMCA/Sales 14Mb BRAM, 1.2Gb/s LVDS, DDR3- 1066 Performance is 16xof host computer CPU & operating sytem dependent

Industrial Computer

The Industrial Computer Developed at Nikhilon was successfully deployed to an esteemed customer at China with 30 numbers of Industrial Computers & 500 numbers of FPGA cards. This was used for customer data processing, using Nikhilon developed Algorithm AES, CSA, DES & TDES.

AES-128

Performance: 3000 MKeys /sec Device Tested: Artix FPGA

CSA

Performance: MKeys /sec Device Tested: Artix FPGA

DES

Performance: MKeys /sec Device Tested: Artix FPGA

TDES

Performance: MKeys /sec Device Tested: Artix FPGA

Hi-Speed ADC Board Features

The ADC Board is an evaluation board for the AD9653, quad 16-bit ADC. This reference design provides all of the support circuitry required to operate the devices in their various modes and configurations. It is designed to interface directly with the VEGA-10G SBC, allowing users to download captured data for analysis. The Visual Analog software package, which is used to interface with the device's hardware, allows users to download captured data for analysis with a user-friendly graphical interface. The SPI Controller software package is also compatible with this hardware, and allows the user to access the SPI programmable features of the ADC.

VEGA-10G

Radar Processing Unit [RPU]: 48 channel SOC based radar Signal & Data processing development platform
